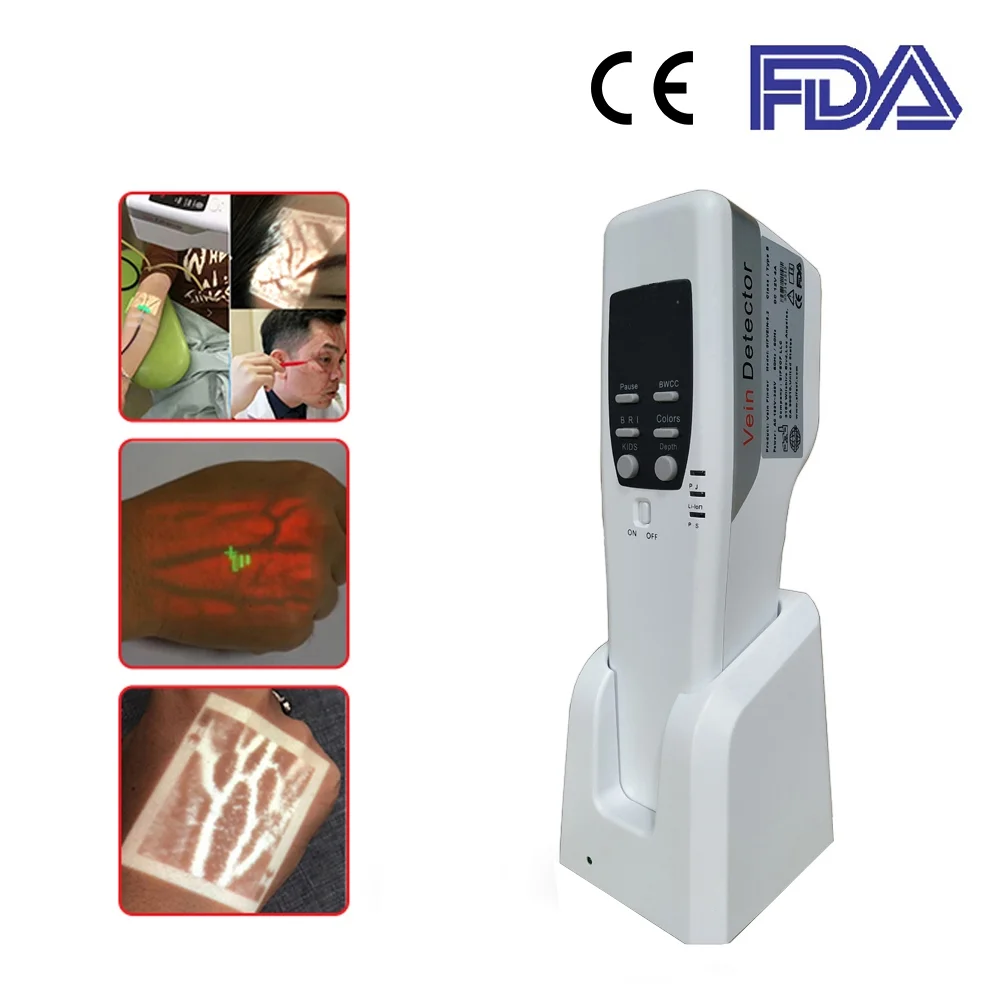

Handheld Medical Vein Finder: Vdetector-P2


Type: Handheld Infrared Vein illuminator.

Light type: Near-Infrared.

Depth: – Up to 10 mm in the hand with the help of an intensifier in the palm (accessory provided for free) – 3 – 5 mm for legs and arms.

Best Projection Distance: 200~250mm.

Main Wavelength Of Light Source: 750nm~940nm.

Product Category: Vein Visualization on Peripheral IV Procedures.

Certification: FDA, CE.

What’s in the box?

  • 1 x Handheld Medical Vein Finder: Vdetector-P2
  • 1 x Intensifier
  • Charger
  • 12-month warranty





2,150.00 2,850.00

Overview:

Handheld Medical Vein Finder: Vdetector-P2 projects the in-situ image on the surface of the skin. In order to help nurses to check vascular orientation and distribution. Further, the enhanced model has various colors, which can improve the clarity and identification effectively.



Handheld Medical Vein Finder: Vdetector-P2 takes advantage of the different absorption rates of near-infrared light illuminating veins. The Vdetector-P2 vein detector allows medical professionals to take a closer look at patients’ veins and determine the most viable route for cannulation or injection.

The handheld vein finder Vdetector-P2 is a near-infrared vein detector composed of a mainboard, a display screen, a camera, and a LED light source.

After photoelectric conversion and image processing, the information is filtered and displayed on the screen of the device.



Handheld Vein Finder Key Features:

Depth recognition:

Adjustable parameters based on the depth of the vein.

Color adjustment

option according to different people’s skin tones. This feature gives the vein projection more clarity and offers higher clinical accuracy.

Black & White Reverse:

Black and white reverse to adjust the switching between vein display and background color. The combination of the three light color modes gives the user more realistic, clearer, and more accurate venous vessel positioning during clinical use.

Child mode:

The area of projected area is reduced in size and the processing of vein images is more meticulous. Nurses can also use the intensifier that comes with the Vdetector-P2 to get a better vein-viewing experience.

Vdetector-P2 Additional Features:

  • Fully digital image acquisition and display mode. Improved version of the digital camera capture frames higher smoother.
  • Built-in cooling system to guarantee the stability and security of long-time use.
  • Easy and simple user interface that provides instantaneous image acquisition, fast response, and self-scanning function.
  • Vdetector-P2 vein finder also has a Brightness adjustment feature that improves projection quality, reduces environmental constraints, and adapts to multiple application scenarios as well.
  • Vdetector-P2 uses a new type of optical structure design. That can realize the original position projection and improve the vein recognition rate.
  • Supports image enhancement algorithm. Hence, more a clear vein image resolution.

Vdetector-P2 Handheld Vein Finder Advantages:

Handheld Medical Vein Finder: Vdetector-P2 projects the in-situ image on the surface of the skin. In order to help nurses to check vascular orientation and distribution. Further, the enhanced model has various colors, which can improve the clarity and identification effectively.

Frame rate 30 frames/second, strong real-time sensors.

✓ Real-time high definition display of veins.

✓ Can be used for different kinds of patients: adults, children, infants, dark-skinned, obese, etc.

✓ Suitable for all skin types.

✓ Rapid vein projection



Use Cases:



Vdetector-P2 Vein Finder Technical Specifications:

  • Imaging method: DLP in-situ projection, no laser.
  • Maximum projection depth: ≤ 8mm. (10mm with the intensifier)
  • Infrared wavelength: 850NM.
  • Rated power: 25VA.
  • Stand-by time: ≥180min.
  • Charging time: 3H(Off state).
  • Image Resolution: 824*480.
  • Contrapuntal precision: ≤ 0.2mm.
  • Projection brightness: 1W20 Lumens (adjustable).
  • Optimal imaging distance: 20cm-25cm.
  • Host weight: 0.5 kg.
  • Length: 220mm.
  • Frame frequency: > 30 frame/s.
  • Projection color: white/green/ red light can be switched.
  • Working mode: color adjustment, brightness adjustment, black and white reverse, pause, depth recognition, children mode.
  • Bracket: table model/cart model (optional).
https://www.youtube.com/watch?v=L-3NFwP-A_g
https://youtu.be/sG7e-HX5zhA
https://youtube.com/shorts/RwkGptdYVmg?feature=share

Certifications:

  • FDA
  • CE
